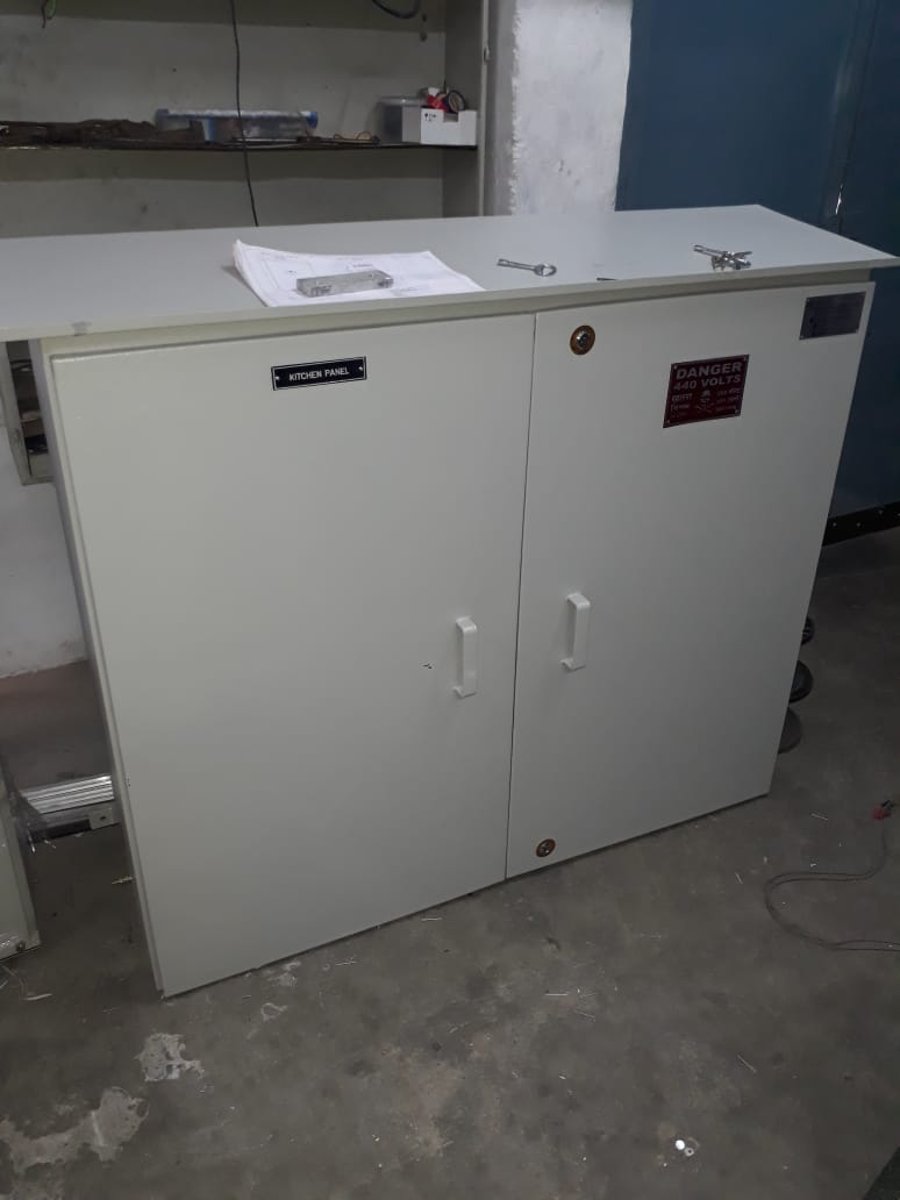

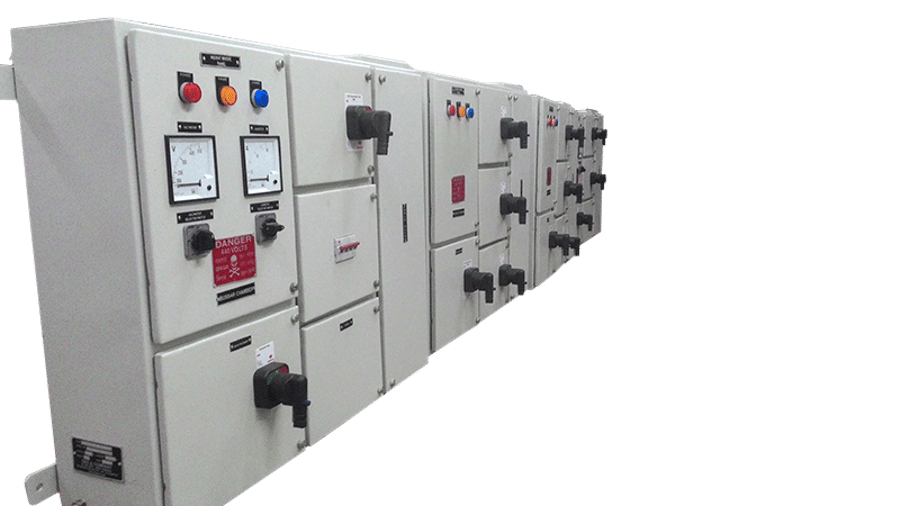

Power Distribution Panel
Power Distribution Panel

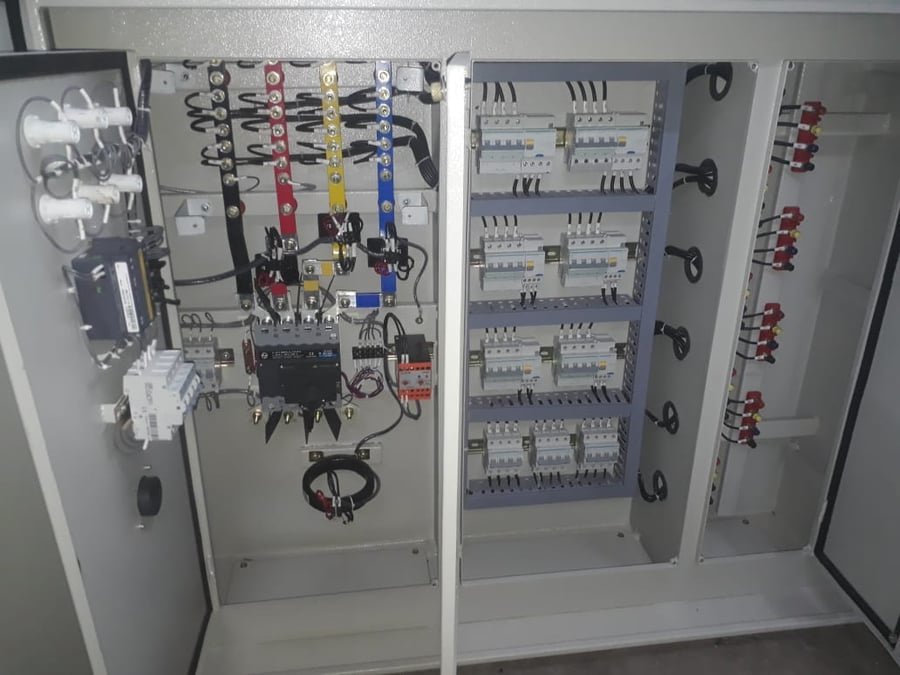

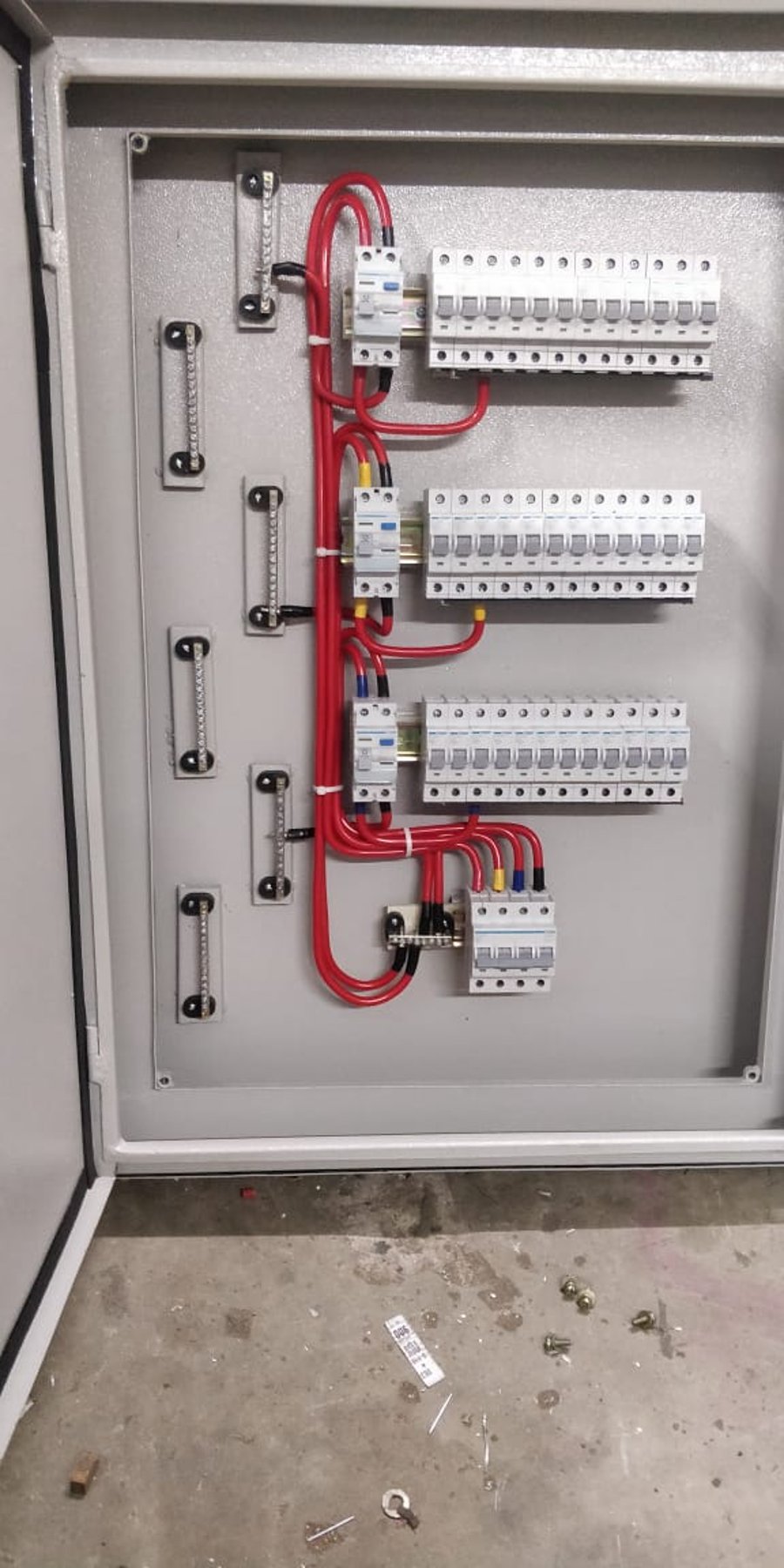

PDB Panel full form is Power Distribution Panel is a component of an electrical system that Help to distribute electrical power into a subsidiary circuit by a circuit breaker and switch fuse unit. Power Distribution Panel also is known as the Power Control Centre of the electrical Control panel. And it equipped complete with all types of the required number of circuit breakers, switch fuse unit, contractor, protective relays, fuses, indicating lamps, push buttons, busbar. We are the Reputed Manufacturer in odisha .
| Application: | Protection and Control Power Distribution System. |
|---|---|
| AC Rating Volts: | @0 – 500V. |
| AC Rating Amps: | 100 – 4000A. ( Based on customer’s requirement.) |
| Rated Insulated Voltage: | 690V. |
| Temp. Rise Up to: | 35°C Rise over 50°C ambient. |
| Degree of Protection: | IP 52, 54, 55, 65. |
| Power Busbar Size: | Al. or Cu. Busbar. |
| Over current Protection: | Properly. |
| Enclosure Painting: | 7 tank Powder Coated Paint and as per Client’s requirement. |
| Panel Mounting: | Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame. |
| Current Monitoring: | Possible. |
| Phase Monitoring: Configuration: | Possible |
| Type Test performance: | Short Circuit with Stand temp. rise with stand, Degree of Protection. |
| Product Warranty: | 12 Months from Date of Supply . |
