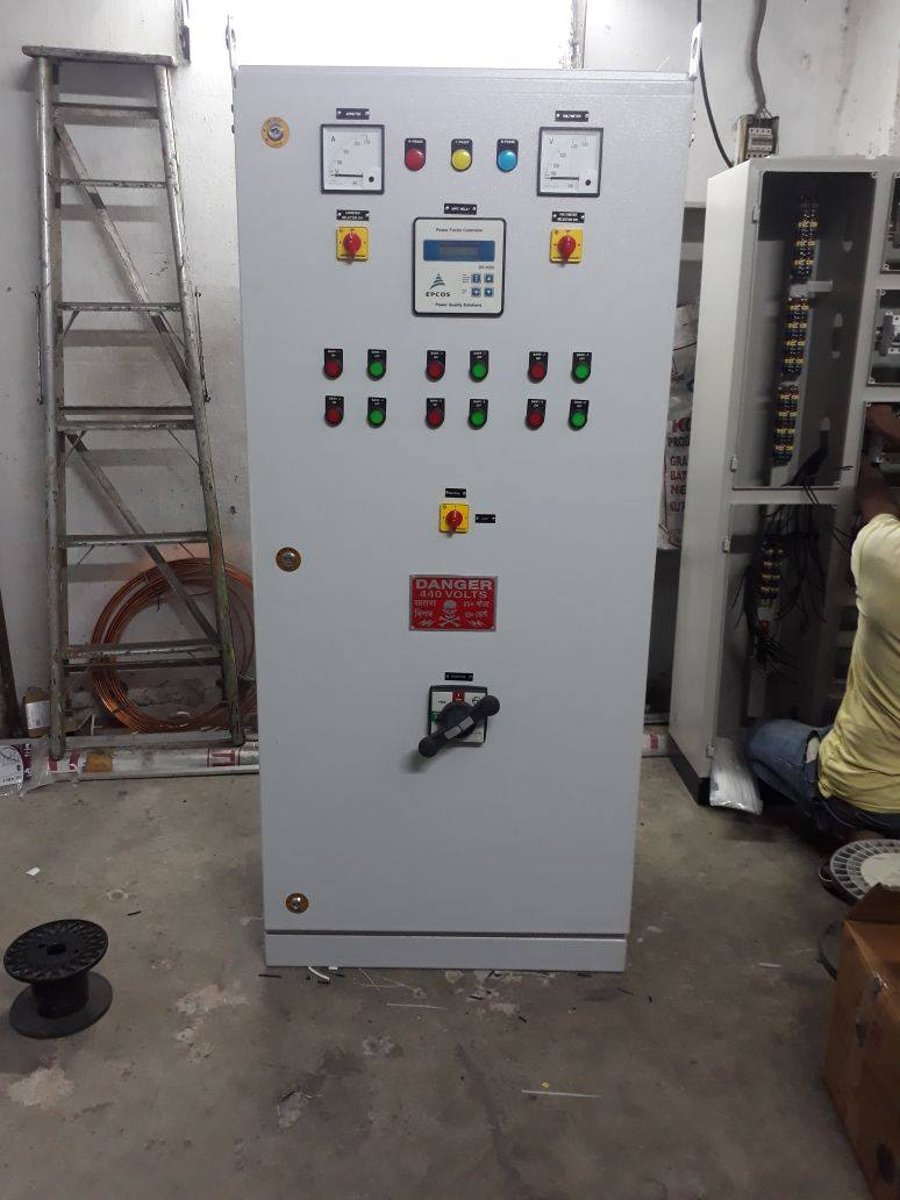

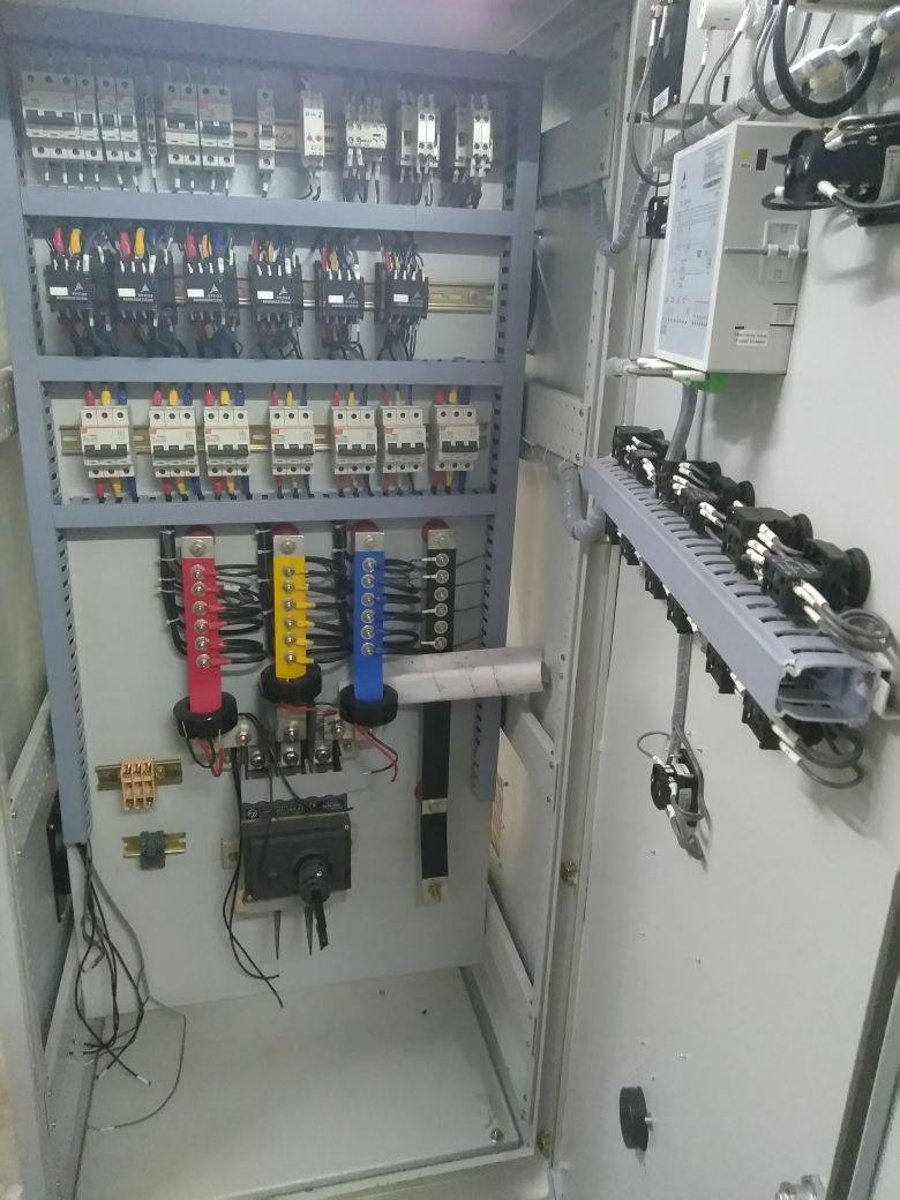

APFC /Capacitor Panel
APFC /Capacitor Panel
APFC is an automatic power factor electrical Panel which is employed to boost the power factor, whenever required, by switching ON and OFF the desired capacitor bank units automatically. These are stage-based pre-programmable micro controller with multiple capacitors and can be turned on or off automatically as per requirements by triggering the capacitor banks in multiple stages by directly sensing the reactive load, which works on the principle of VAR sensing and tends to keep the power factor close to unity , We are the Reputed Manufacturer in Bhubaneswar
| Application: | Improvement Of Power Factor in the system. |
|---|---|
| AC Rating Volts: | 0 – 800V. |
| AC Rating Amps: | 100 – 1000A. |
| AC Rating Frequency: | 50Hz |
| Rated Insulated Voltage: | 690V |
| Temp. Rise Up to: | 35°C Rise over 50°C ambient. |
| Degree of Protection: | IP 52, 54, 55, 65. |
| Power Busbar Size: | Al. or Cu. Busbar. |
| Over current Protection: | Properly. |
| Enclosure Painting: | 7 tank Powder Coated Paint and as per Client’s. |
| Panel Mounting: | Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame. |
| Current Monitoring: | Possible . |
| Phase Monitoring: | Possible . |
| Configuration: | Based on customer’s requirement . |
| Type Test performance: | Based on customer’s requirement . |
| Product Warranty: | At least 12 Month . |
