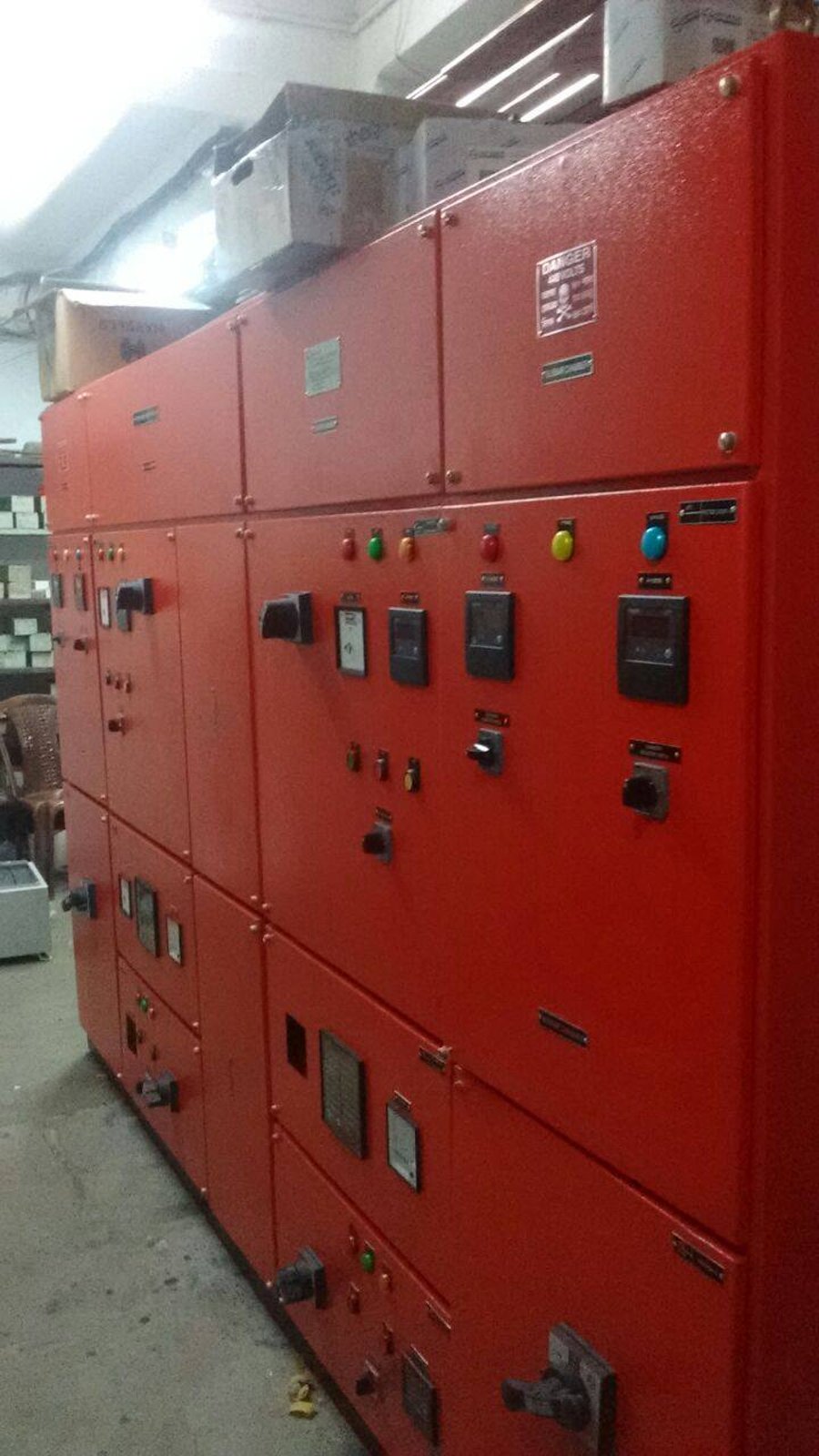

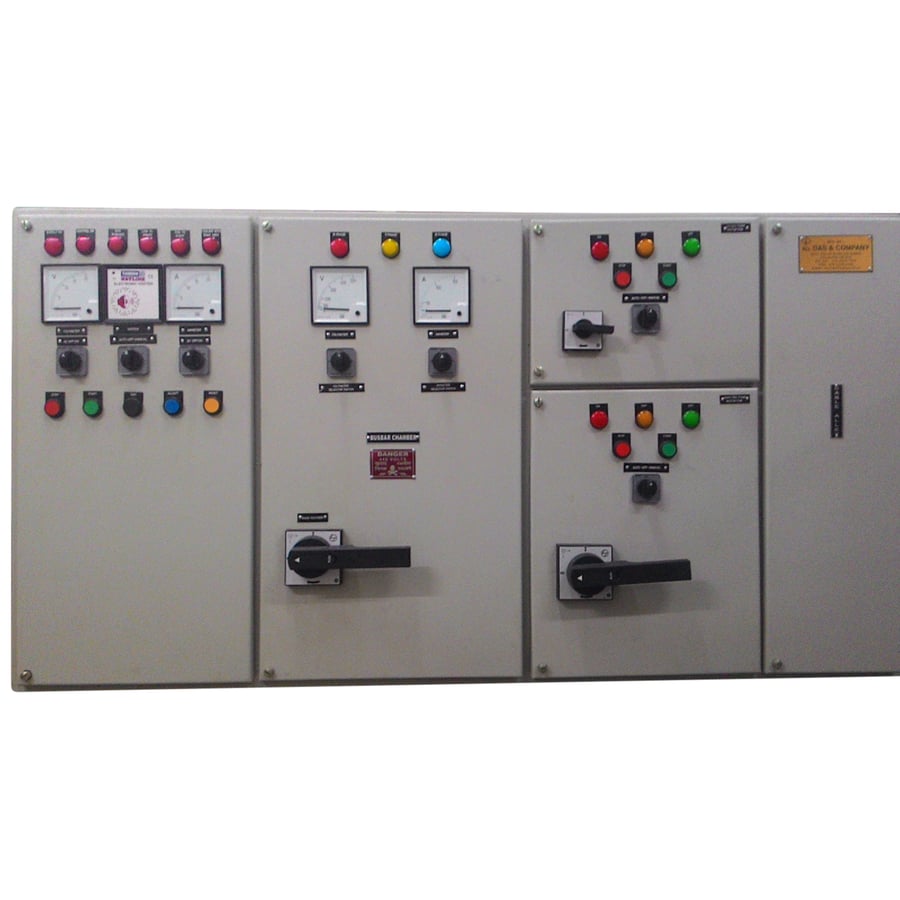

Fire Fighting MCC Panel
Fire Fighting MCC Panel
Fire Fighting MCC Panel is Operate like a MCC panel which widely used to Control Motors like hydrant pumps, jockey pumps and sprinkler pumps/DG pumps with diesel engine controller for detecting and Controlling Fire in the Initial stage. The Fire Fighting MCC Panel usually Consider to Control the Fire Fighting Unit to supply the Water through Pump motor. Whereas MCC panel control the motors and pumps require supply all the time, Fire Fighting MCC panel is Control unit of all pumps which used for Fire Fighting Units only when it is required. Panel Feeders are always designed on the basis of motor pump’s ratings (kW/HP) and the protection that the Pump motor requires. We provide Fire Fighting MCC panels with auto/manual/remote provision, so controlling them in case of fire breakouts. We are the Reputed Manufacturer in Bhubaneswar .
| Application: | Control & Protect the Fire Fighting System. |
|---|---|
| AC Rating Volts: | 0 – 500V. |
| AC Rating Amps: | 100 – 2500A ( Based on customer’s requirement.) |
| AC Rating Frequency: | 50Hz. |
| Rated Insulated Voltage: | 690V. |
| Temp. Rise Up to: | 35°C Rise over 50°C ambient. |
| Degree of Protection: | IP 52, 54, 55, 65. |
| Power Busbar Size: | Al. or Cu. Busbar. |
| Over current Protection: | Properly. |
| Enclosure Painting: | 7 tank Powder Coated Paint and as per Client’s requirement. |
| Panel Mounting: | Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame. |
| Current Monitoring: | Possible |
| Phase Monitoring: | Possible. |
| Configuration: | Based on customer’s requirement . |
| Type Test performance: | Short Circuit with Stand temp. rise with stand, Degree of Protection . |
| Product Warranty: | At least 12 Month . |
